M10B
可搬运10KG
Transportable10KG

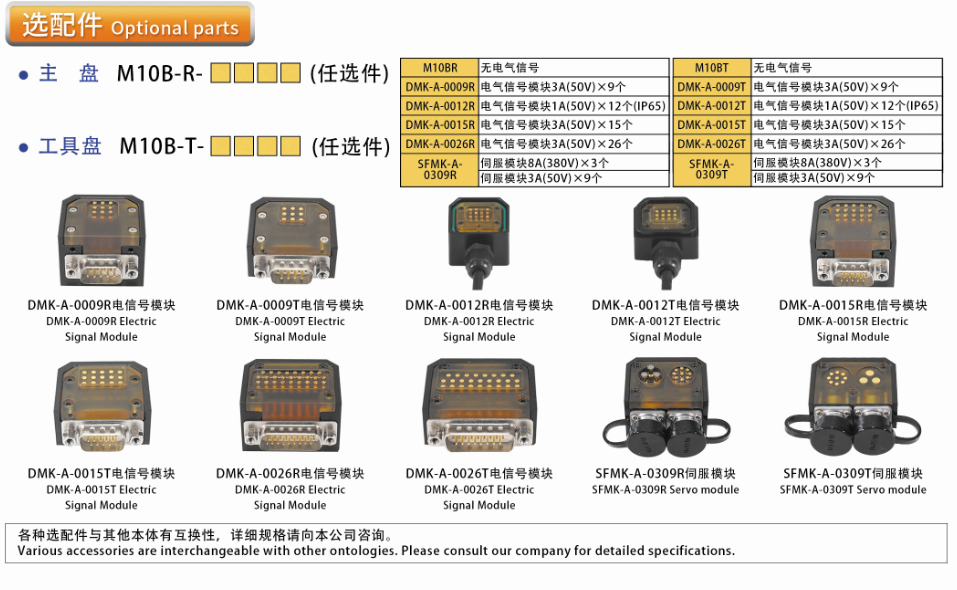

主盘M10B-R-全系列模块
Main disk M10B-R-
Full range of modules
工具盘M10B-T-全系列模块
Tool disk M10B-T-
Full range of modules
●重量优化;
采用轻量化结构，体积小重量轻。
●拆装机构;
采用主盘气动钢珠强制锁紧、解锁方式。
,查询反馈;
内置主辅盘锁紧/解锁/在位检测装置。
●安全保险机构;
采用了机械式故障保险机构，在装配驱动
介质失效情况下，主盘与工具盘也不会分离。
●Weight optimization;
Light weight structure, small size and light weight.
●Disassembly and assembly mechanism;
The main disk pneumatic steel ball is forced to lock and unlock.
●Query feedback;
Built in locking / unlocking / in place detection device of main and
auxiliary disks.
●Safety insurance institutions;
The mechanical failure insurance mechanism is adopted. When the
assembly driving medium fails, the main disk and the tool disk will
not be separated.

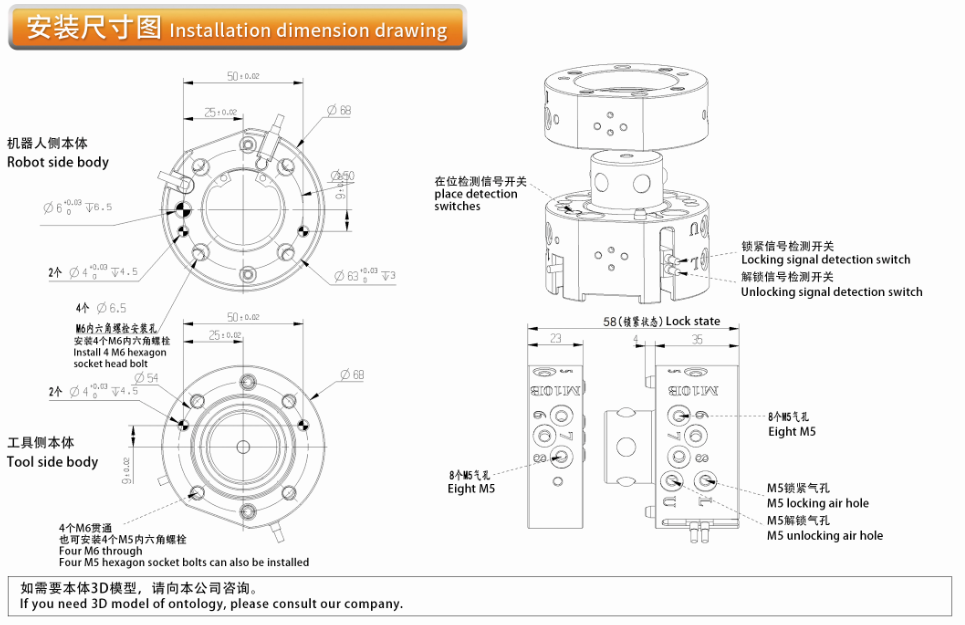

主盘、工具盘附件
●主盘内六角螺栓(M6x30)x4个
安装在机器人连接板处
●工具盘内六角螺栓(M5x25)x4个
安装在末端工具上
●1个φ6x10定位销4个φ4x10定位销
●内六角螺栓密封圈定位销出货随主盘发出.
