M10A
可搬运10KG
Transportable10KG
主盘M10A-DMK0015-R
Main disk M10A-DMK0015-R
工具盘M10A-DMK0015-T
Tool disk M10A-DMK0015-T
●重量优化;
采用轻量化结构，体积小重量轻。
●拆装机构;
采用主盘气动钢珠强制锁紧、解锁方式。
●查询反馈;
内置主辅盘在位检测装置。
●安全保险机构;
采用了机械式故障保险机构，在装配驱动
介质失效情况下，主盘与工具盘也不会分离。
●Weight optimization;
Light weight structure, small size and light weight.
●Disassembly and assembly mechanism;
The main disk pneumatic steel ball is forced to lock and unlock.
●Query feedback;
Built-in main and auxiliary disk in-situ detection device.
●Safety insurance institutions;
The mechanical failure insurance mechanism is adopted. When the
assembly driving medium fails, the main disk and the tool disk will
not be separated.

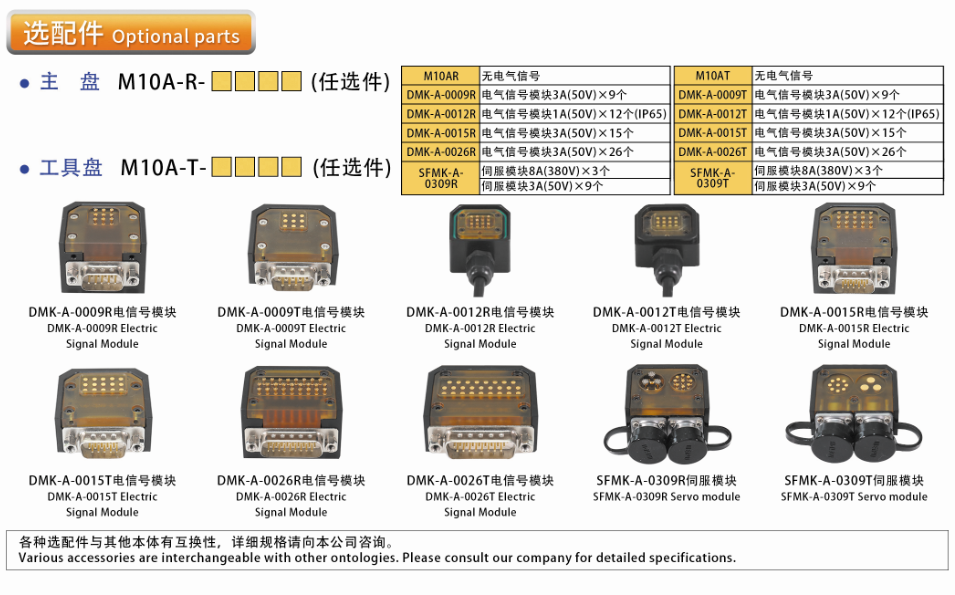

主盘、工具盘附件
●主盘内六角螺栓(M4x30)x3个(M5x30)x3个
两种安装方式M4x30螺栓在主盘直接安装
M5x30在连接板处安装
●工具盘内六角螺栓(M4x25)x3个
安装在末端工具上
●4个φ4x12定位销
●内六角螺栓密封圈定位销出货随主盘发出
