M20A 可搬运20KG
Transportable20KG
●重量优化; 采用轻量化结构，体积小重量轻。
●拆装机构;采用主盘气动钢珠强制锁紧、解锁方式。
●查询反馈;内置主辅盘在位检测装置。
●安全保险机构;采用了机械式故障保险机构，在装配驱动，介质失效情况下，主盘与工具盘也不会分离。
主盘M20A-DMK0009-R
Main disk M20A-DMK0009-R
工具盘M20A-DMK0009-T
Tool disk M20A-DMK0009-T
主盘、工具盘附件

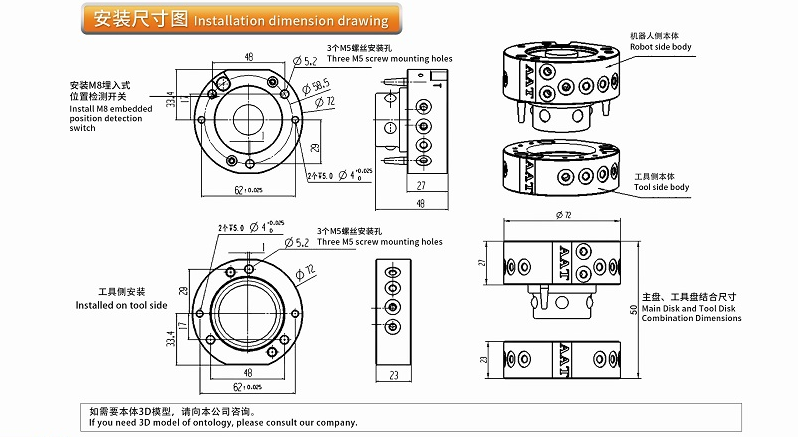

●主盘内六角螺栓(M5x30)x3个(M6x30)x3个两种安装方式M5x30螺栓在主盘直接安装
M6x30在连接板处安装
工具盘内六角螺栓(M6x25)x3个安装在末端工具上
2Φ04x12定位销
●内六角螺栓密封圈定位销出货随主盘发出
●Weight optimization;
Light weight structure, small size and light weight.
●Disassembly and assembly mechanism:
The main disk pneumatic steel balis forced to lock and unlock.
●Query fedback;
Built-in main and auxiliary disk in-situ detection device.
●Safety insurance institutions;
The mechanical filure insurance mechanism is adopted. When the assembly diving medium fil the main disk and the tool dskill
not be separated.
