M500B
可搬运500KG
Transportable500KG

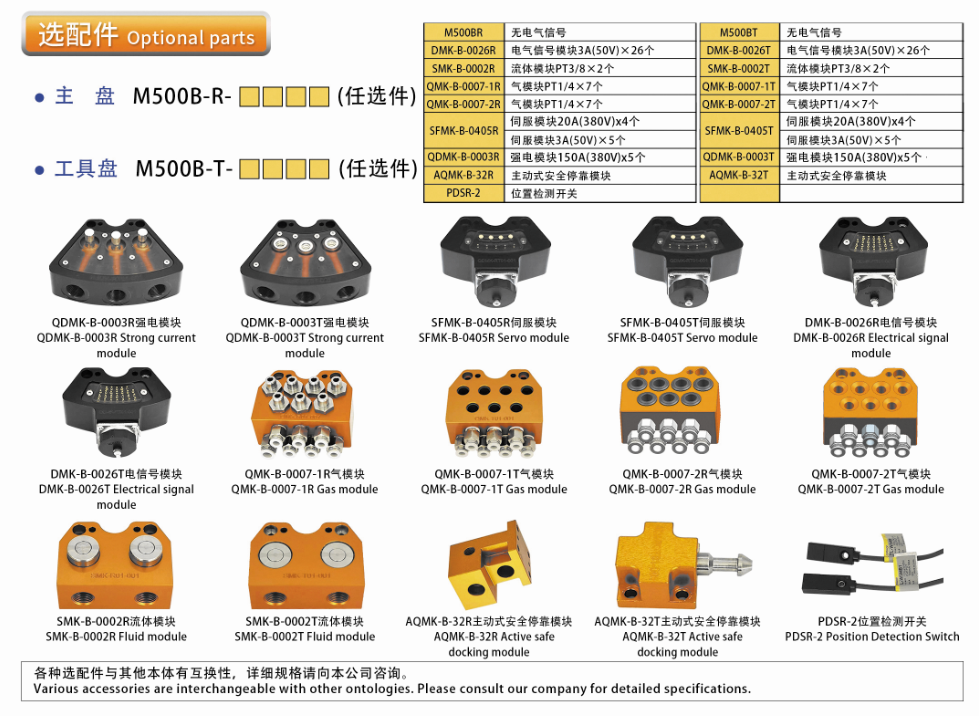

主盘M500B-R-全系列模块
Main disk M500B-R-
Full range of modules
工具盘M500B-T-全系列模块
Tool disk M500B-T-
Full range of modules
●重量优化;
采用轻量化结构，体积小重量轻。
●拆装机构;
采用主盘气动钢珠强制锁紧、解锁方式。
●查询反馈;
内置主辅盘锁紧/解锁/在位检测装置。
●安全保险机构;
采用了机械式故障保险机构，在装配驱动
介质失效情况下，主盘与工具盘也不会分离。
●Weight optimization;
Light weight structure, small size and light weight.
●Disassembly and assembly mechanism;
The main disk pneumatic steel ball is forced to lock and unlock.
●Query feedback;
Built in locking / unlocking 1 in place detection device of mainand
auxiliary disks.
●Safety insurance institutions;
The mechanical failure insurance mechanism is adopted. When the
assembly driving medium fails, the main disk and the tool disk will
not be separated.

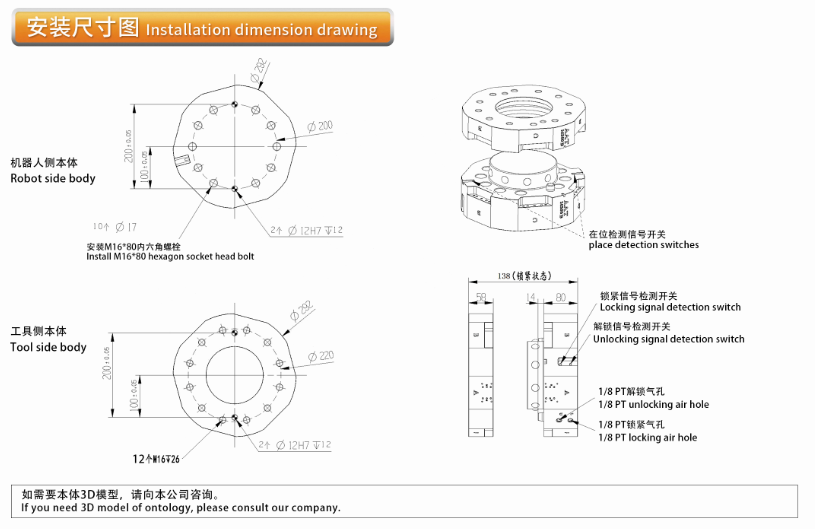

主盘、工具盘附件
●主盘内六角螺栓(M16x90)x10个
安装在机器人连接板处
● 工具盘内六角螺栓(M16x50)x12个
安装在末端工具上
●4个φ12x20定位销
●内六角螺栓密封圈定位销出货随主盘发出
